[Mondrian] Mondrian 4 XSD

[Diethard Steiner]

In addition to the previous email I found two more problems:
- It is not possible to define a degenerate dimension: The DTD is unaware
of any column attribute for the attribute element (sample in Mondrian 4
book shows an attribute column)
- It is not possible to create a FactLink as a child of DimensionLinks


On Tue, Jan 15, 2013 at 1:05 PM, Diethard Steiner <
diethard.steiner at gmail.com> wrote:

> So I have been creating an XML file based on the Mondrian 4 DTD you
> mentioned.

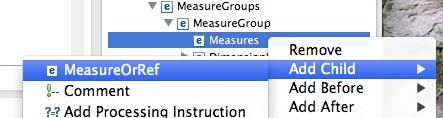

> There seems to be a problem with the Measure element within Measures ...
> which turns out to be invalid based on this DTD. I am following the example
> from the Mondrian 4 book. Screenshots attached. Based on the DTD, there
> seems to be only MeasureOrRef valid within Measures. [image: Inline image
> 1][image: Inline image 2]
>
>
> On Thu, Jan 10, 2013 at 5:52 PM, Diethard Steiner <
> diethard.steiner at gmail.com> wrote:
>
>> Excellent! Thanks, I'll check it out.
>> Best regards,
>> Diddy
>> On 10 Jan 2013, at 17:49, Luc Boudreau <lucboudreau at gmail.com> wrote:
>>
>> Mondrian generates DTDs when building. There is an old XSD file checked
>> in for Mondrian 3, but it is not updated systematically. For the latest
>> Mondrian 4 DTD, try this link:
>>
>>
>> http://ci.pentaho.com/view/Analysis/job/mondrian-4.0/lastSuccessfulBuild/artifact/lib/mondrian.dtd
>>
>> Luc
>>
>>
>> On Wed, Jan 9, 2013 at 6:26 AM, Diethard Steiner <
>> diethard.steiner at gmail.com> wrote:
>>
>>> My best greetings to all of you!
>>> If I remember Julian's words correctly from the Pentaho User Meeting in
>>> Amsterdam (and if nothing has changed since then), Schema Workbench will
>>> not be used any more for creating Mondrian 4 XML files. So, that's no
>>> problem for me as long as I can get hold of an XSD file to validate the
>>> XML. I could find a very old DTD and then also an XSD for Mondrian 3.x but
>>> no sight yet of anything related to Mondrian 4. Can someone please point me
>>> to the right direction?
>>> Thanks,
>>> Diddy
>>> _______________________________________________
>>> Mondrian mailing list
>>> Mondrian at pentaho.org
>>> http://lists.pentaho.org/mailman/listinfo/mondrian
>>>
>>
>> _______________________________________________
>> Mondrian mailing list
>> Mondrian at pentaho.org
>> http://lists.pentaho.org/mailman/listinfo/mondrian
>>
>>
>>
>
