[Mondrian] Mondrian 4 XSD

Diethard Steiner diethard.steiner at gmail.com
Wed Jan 16 11:22:32 EST 2013


In regards to the validation problems find below my summary:
Please find attached the XML file and DTD which should highlight the
problems, mainly with ColumnDefs, Measures and DimensionLinks elements.
Please adjust DTD so that a proper validation is possible.
I based the syntax of my example on the foodmart sample that is supplied
with Saiku server (Mondrian 4 version). The book Mondrian in Action seems
to use a different syntax in a few areas (which I highlighted yesterday and
which are not in line with the syntax Mondrian seems to expect). I tested
the attached Mondrian schema on Saiku successfully.


On Tue, Jan 15, 2013 at 3:47 PM, Diethard Steiner <
diethard.steiner at gmail.com> wrote:

> In addition to the previous email I found two more problems:
> - It is not possible to define a degenerate dimension: The DTD is unaware
> of any column attribute for the attribute element (sample in Mondrian 4
> book shows an attribute column)
> - It is not possible to create a FactLink as a child of DimensionLinks
>
>
> On Tue, Jan 15, 2013 at 1:05 PM, Diethard Steiner <
> diethard.steiner at gmail.com> wrote:
>
>> So I have been creating an XML file based on the Mondrian 4 DTD you
>> mentioned.

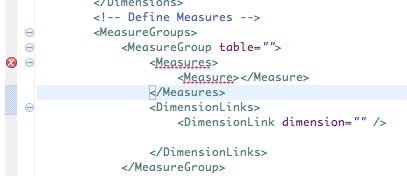

>> There seems to be a problem with the Measure element within Measures ...
>> which turns out to be invalid based on this DTD. I am following the example

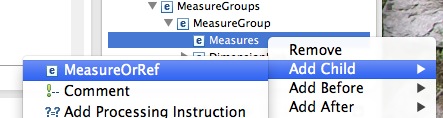

>> from the Mondrian 4 book. Screenshots attached. Based on the DTD, there
>> seems to be only MeasureOrRef valid within Measures. [image: Inline
>> image 1][image: Inline image 2]
>>
>>
>> On Thu, Jan 10, 2013 at 5:52 PM, Diethard Steiner <
>> diethard.steiner at gmail.com> wrote:
>>
>>> Excellent! Thanks, I'll check it out.
>>> Best regards,
>>> Diddy
>>> On 10 Jan 2013, at 17:49, Luc Boudreau <lucboudreau at gmail.com> wrote:
>>>
>>> Mondrian generates DTDs when building. There is an old XSD file checked
>>> in for Mondrian 3, but it is not updated systematically. For the latest
>>> Mondrian 4 DTD, try this link:
>>>
>>>
>>> http://ci.pentaho.com/view/Analysis/job/mondrian-4.0/lastSuccessfulBuild/artifact/lib/mondrian.dtd
>>>
>>> Luc
>>>
>>>
>>> On Wed, Jan 9, 2013 at 6:26 AM, Diethard Steiner <
>>> diethard.steiner at gmail.com> wrote:
>>>
>>>> My best greetings to all of you!
>>>> If I remember Julian's words correctly from the Pentaho User Meeting in
>>>> Amsterdam (and if nothing has changed since then), Schema Workbench will
>>>> not be used any more for creating Mondrian 4 XML files. So, that's no
>>>> problem for me as long as I can get hold of an XSD file to validate the
>>>> XML. I could find a very old DTD and then also an XSD for Mondrian 3.x but
>>>> no sight yet of anything related to Mondrian 4. Can someone please point me
>>>> to the right direction?
>>>> Thanks,
>>>> Diddy
>>>> _______________________________________________
>>>> Mondrian mailing list
>>>> Mondrian at pentaho.org
>>>> http://lists.pentaho.org/mailman/listinfo/mondrian
>>>>
>>>
>>> _______________________________________________
>>> Mondrian mailing list
>>> Mondrian at pentaho.org
>>> http://lists.pentaho.org/mailman/listinfo/mondrian
>>>
>>>
>>>
>>
>
